Sis W

127' Burger Burger Tri-Deck Motoryacht

  • Year: 2003
  • Current Price: US$ 17,900,000
  • Located in Fort Lauderdale, FL
  • Hull Material: Aluminum
  • Engine/Fuel Type: Twin Diesel

Additional Specs, Equipment and Information:

Builder/Designer

Builder: Burger Designer: Burger Design Team

Dimensions

LOA: 127' Beam: 27' Draft: 6' 6

Engines

Engine(s): Caterpillar Engine(s) HP: 1300 Engine Model: 3508B
Cruising Speed: 13 knots Max Speed: 15 knots

Tankage

Fuel: 14,130 gallons Water: 2,550 gallons Holding: 545 gallons

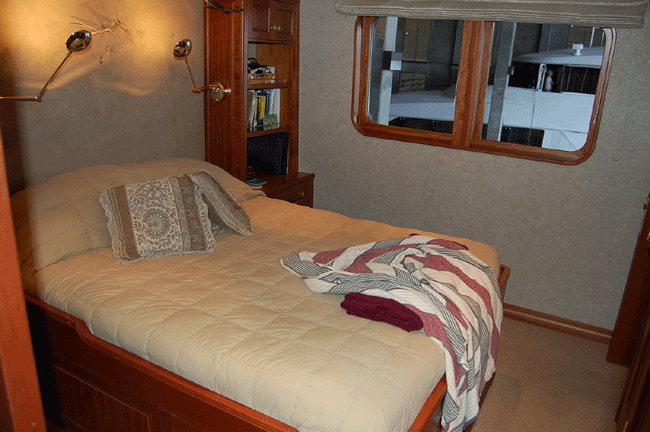

Capt. Quarter

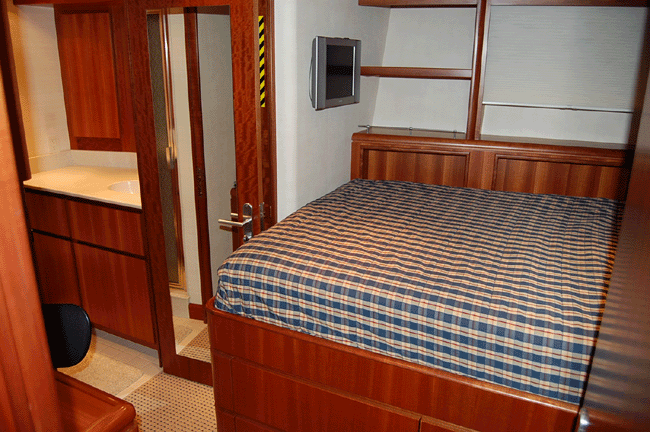

Crew quarter Queen

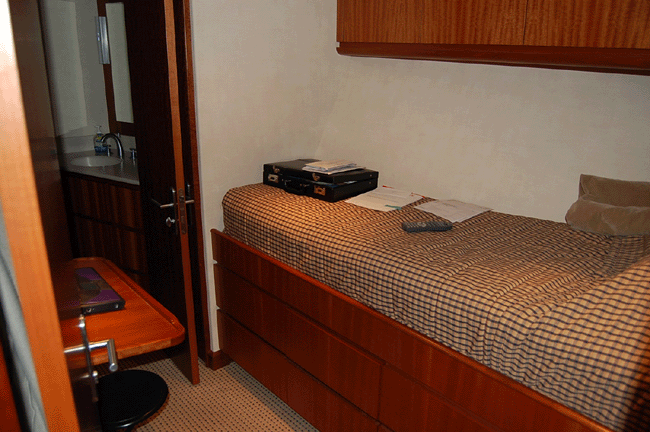

Crew quarter single(2)

Distribution panel

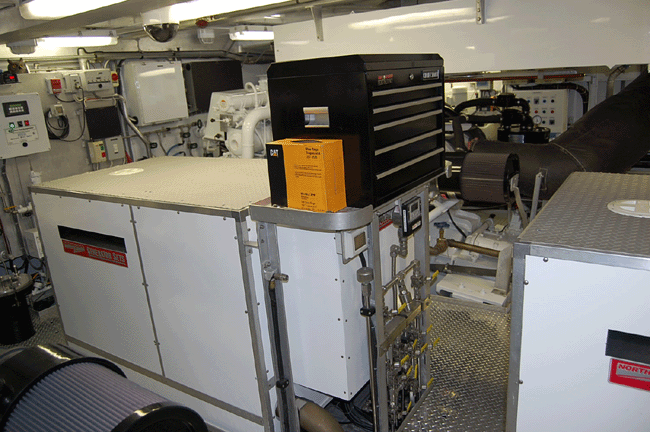

Generators

Jacuzzi

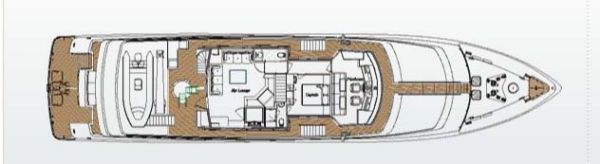

MAIN DECK

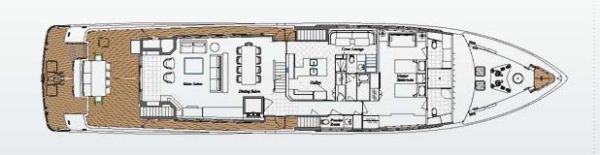

Lower Deck

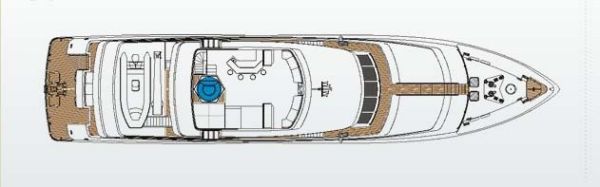

Upper deck

   BOW

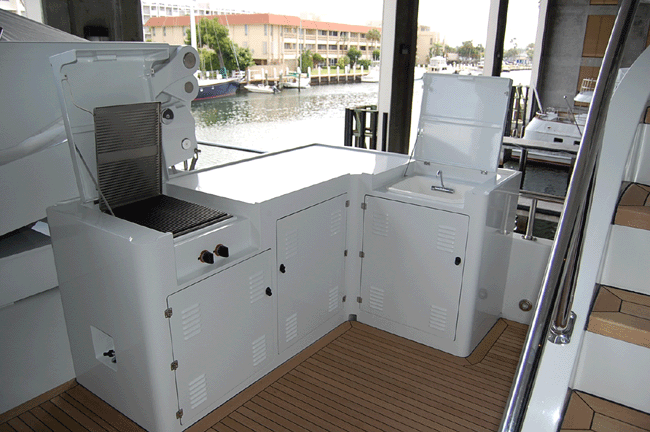

BBQ Grill


Master Stateroom


Master Head

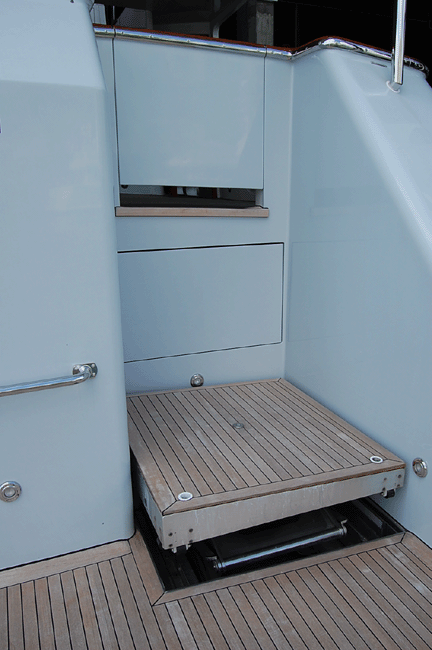

Swim platform elevator


Exterior Walkthrough & Features

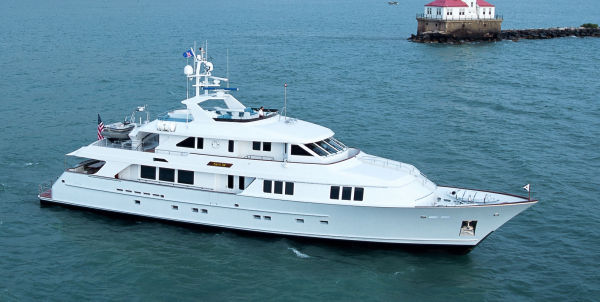

Her classic, American lines can be admired from any angle.

Her flybridge boasts ample seating, generous sun bathing areas, a full-size Jacuzzi, and a full wet bar.

Her aft deck provides a great place for casual dining for 10, and her outdoor amenities make for a popular outdoor lounge area.

Interior Walkthrough & Features
Her spacious interior allows for massive entertaining spaces and full wheelchair accessibility throughout, thanks to wide hallways, doorways, and a 3-deck elevator system. Her interior maintains a traditional ambience with beautiful African cherry woodwork, flawless joinery, and Madrone burl wood accent panels. Custom carpet is featured in most interior living areas.

Her 5 luxurious staterooms sleep 10 guests. Her on-deck Master Stateroom will impress the most discerning yachtsman. Very kind crew and captain’s accommodations make her entire crew happy and ready to serve.

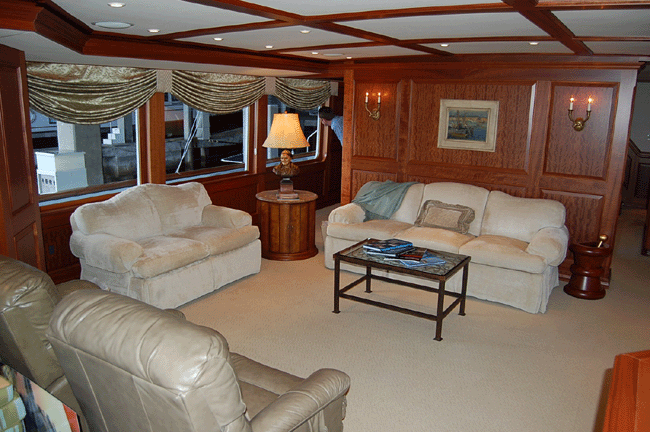

Her Main Salon features huge open areas for lounging, entertaining, and relaxing. Her fireplace, and Clavinova piano make the Main Salon unique to any vessel close to her size.

Her commercial galley is equipped with the finest professional cooking and cleaning systems. Her modern equipment makes preparing, cooking, serving, and cleaning a breeze. Large counter spaces, and storage compartments will make any chef happy.

Her formal Dining Salon, separated by beautiful cabinets, seats up to 10 guests.

Her charming Sky Lounge boasts a spectacular view of the world, where the brains of the entertainment center is located, providing access to the movie and music library throughout all interior and exterior areas.

The Sis W is equipped for wheelchair use, although most guests would hardly know. A discreetly positioned and nicely appointed elevator connects all three decks. The custom gangway allows for easy boarding for a wheelchair, and the extra wide hallways, and entrances provide easy access for all guests.

Accommodations
There are a total of 20 berths including captain and crew.

The Main Deck Master Stateroom features a king-sized berth, and a seating area. The bathroom, elegantly appointed with Makore wood and onyx throughout, has a walk in shower and Jacuzzi bathtub, and his and her separate vanity areas.

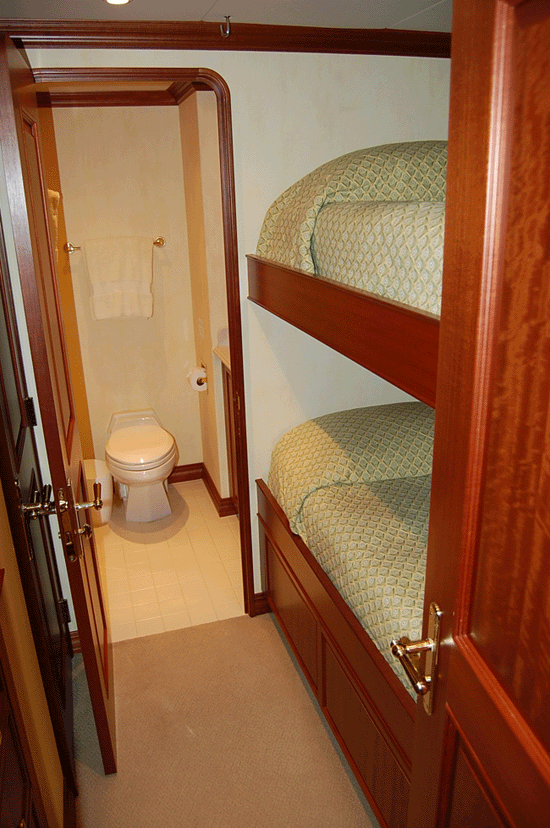

The Master Stateroom has an adjacent cabin suited for children, a nanny or personal staff. It has two bunk beds and a separate bathroom with a shower.
Two Queen Staterooms with generous closets, feature ensuite heads with large walk-in showers.
Two Twin Staterooms with generous closets, feature marble, ensuite heads with large walk-in showers.

Adjacent to the four guest staterooms below deck is a linen storage and utility closet, a laundry center and a 200 bottle climate controlled wine cellar.

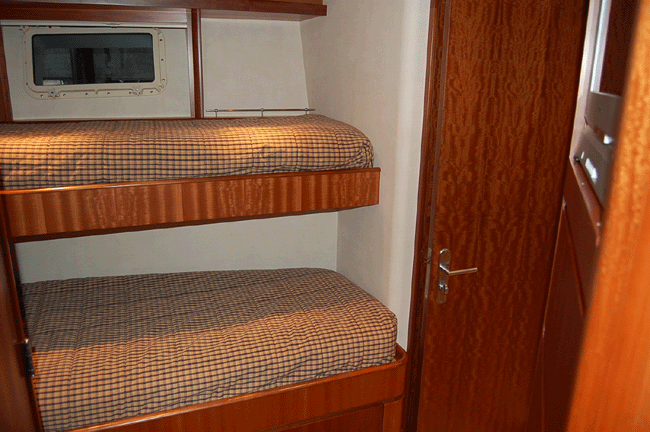

Crew accommodations include a generous Captain cabin behind the bridge, as well as four cabins below. Each with private head and shower, Satellite TV, CD and DVD player and wireless internet.

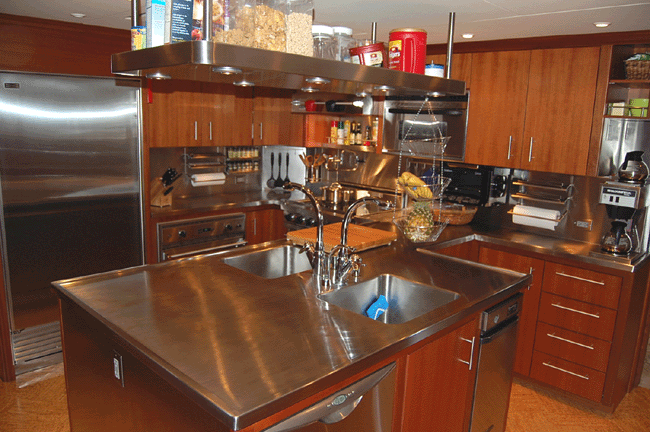

Galley
The Galley is laid out by a highly experienced yacht chef, and is ideal for preparing elaborate dinners with generous storage space and great surfaces for food preparation. There are two separate working areas, one for the chef and one for the serving staff. All appliances are modern and state of the art. Her massive refrigerator and freezer space allows for long-range cruising.
  • Fisher Paykal 2 drawer dishwasher
  • Viking commercial dishwasher
  • GE Refrigerator Freezer
  • Sub-Zero Icemaker
  • Two (2) Sub-Zero freezer drawers
  • Sub-Zero Refrigerator
  • Two (2) Viking convection ovens
  • Viking 4 burner electric glass top range
  • Viking exhaust hood
  • GE microwave oven
  • GE trash compactor
  • Bloomfield coffee maker
  • Cuisinart Toaster oven
  • Stainless steel counter tops
  • Stainless steel overhead dry storage and spice rack

Pilothouse (including Electronics)

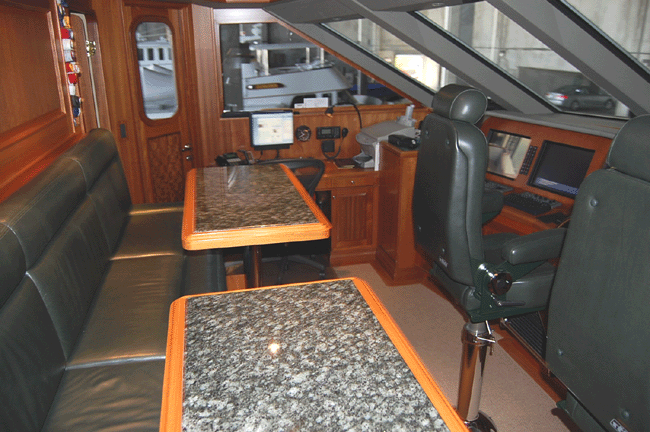

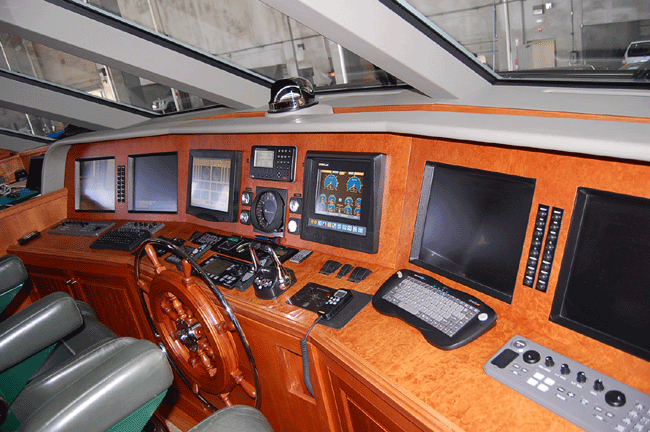

Her Pilothouse showcases an impressive command station with a full 6-screen glass bridge with interchangeable displays.

In addition to two pedestal mounted helm chairs, guests can watch from a luxurious leather upholstered seating area, and two granite topped tables.

Her captain will appreciate great visibility, as well as a large desk and ample work area.
  • Furuno 96 mile X-band color radar with ARPA
  • Furuno 96 mile S-band color radar with ARPA
  • Furuno AIS vessel ID system
  • Furuno color depth sounder
  • Two (2) Leica MX420 GPS units
  • Two (2) Icom MC M602 VHF radios
  • Brooks & Gatehouse Hydra 2000 wind, depth, speed monitor
  • Two (2) Brooks & Gatehouse remote monitors for Hydra system
  • C-Plath gyrocompass
  • C-Plath autopilot
  • C-Plath rudder angle indicators
  • Bow Thruster control (proportional/locking)
  • Searchlight remote control
  • Air horn & whistle control
  • Four glass screen monitors, all interchangeable (SiMON, chart plotter, CCTV, X-band radar)
  • Nobletec Admiral plotter software on separate dedicated PC integrated with X-band radar and AIS
  • Dell tower PC Pentium V
  • Caterpillar Engine CAT-Vision monitor
  • Closed circuit television system, engine room, mast head, aft deck, P&S side decks
  • SiMON Vessel monitoring and alarm system with dedicated PC
  • Burger BASICS vessel alarm system
  • Verizon Internet cellular connect
  • Icom SSB IC M802 radio
  • HP Office Jet printer/fax/scanner
  • Panasonic Hybrid Phone System
  • Global Star SatCom System
  • Stratos Mini-M SatCom/fax system
  • Xenon Carlisle & Finch 25,000,000 candle power search light
  • Glendinning electronic engine controls with manual back-up
  • Kenwood CD, tape, am/fm player with satellite feed antenna
  • Ship’s signal flag collection with holders
  • Locking firearms locker

Wing Station Electronics
Her well-equipped port and starboard wing stations provide for safe and easy manuevering and docking in tight spaces.
  • Glendinning engine and transmission controls
  • Bow thruster control (proportional/locking)
  • Jog steering control
  • Furuno remote: wind, speed, depth
  • Icom VHF radio
  • Air horn control
  • Francis searchlights 8,000,000 candle power

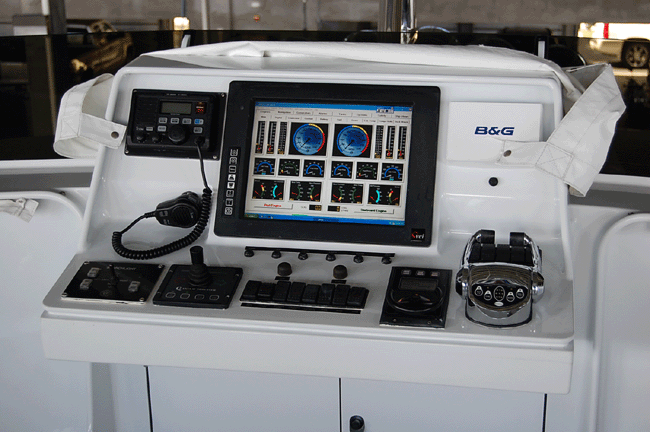

Flybridge (including electronics)
Her flybridge boasts ample seating, generous sun bathing areas, a full-size Jacuzzi, and a full wet bar. Guests will also enjoy the flybridge stereo with access to the on-board music library, and Satellite radio.
  • All weather multi-function glass screen monitor: Plotter; radar; CCTV, SiMON system
  • Brooks & Gatehouse remote monitor: wind; speed; depth
  • IC M502 VHF radio
  • Glendinning engine and transmission controls
  • Searchlight remote control
  • Bow thruster control (proportional/locking)
  • Autopilot and jog steering control
  • Air horn & whistle control

Swim Platform
From the aft deck, a convenient stairway leads to the full beam swim platform, with easy access to water toys and swimming, and a day shower to rinse off after swimming or diving. Adjacent to the swim platform is a lazarette equipped with a dive compressor.

The swim platform has an excellent set up for deep sea fishing, including a fighting chair, outriggers, electric reels for fishing at great depth, an integrated fish ice chest with icemaker, and extensive fishing equipment.

Deck & Hull Equipment

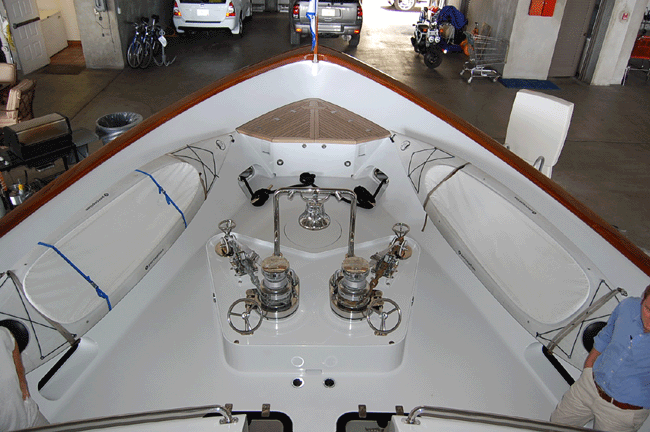

  • Muir VCR 8000 – Two (2) speed fore deck anchor windlasses
  • Muir VC 4000 – Two (2) aft deck capstans
  • P & S ¾in. G4 chain 400 feet each
  • P & S 400lb. Talon stainless steel anchors
  • Fortress FX-125 anchor with chain and line rode
  • Mar-Quip stainless steel boarding ladder
  • Stainless steel swim ladder
  • Teak and aluminum swim platform
  • Swim platform integral fish box
  • Eskimo shaved ice system for fish box
  • Pedestal mounted Pompano fishing chair and rod holders
  • Electric reel rod holder and plug
  • Hydraulic scissor lift integrated into Euro stern for wheelchair movement between aft deck and swim platform
  • Fore and aft throw rings (4)
  • 20 life jackets
  • Dual anchor pockets with thru deck hawse pipes and fresh water wash
  • Swim platform shower
  • Four (4) underwater lights that illuminate the water around the swim platform
  • Fore deck teak seat at stem
  • Lines
  • Bell stand on fore deck
  • Fore deck cuddy storage
  • Forward and aft Gleason reel systems for shore cords
  • Aft deck teak furniture
  • Ships air whistle
  • Nautical Structures pneumatic/hydraulic 23ft.-6in. telescoping passarelle, custom width of 35 inches. (27.5 inches of walking area)
  • Aft deck table and seating

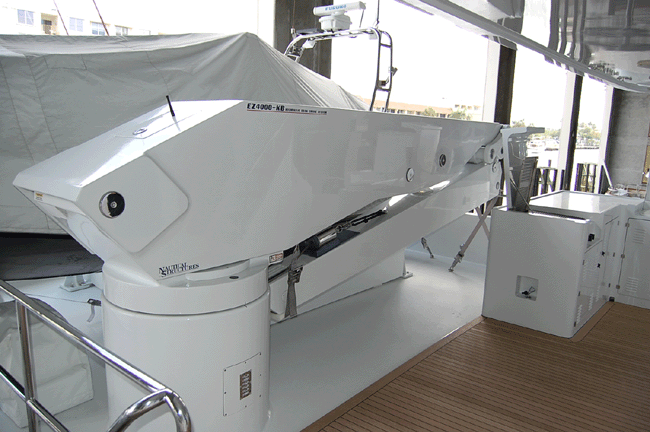

  • Nautical Structures EZ 4000 crane
  • (3) Nautical Structures gantry cranes, aft deck (2) and amidship (starboard)
  • Kahlenberg 5 trumpet air horns and whistle
  • Boat deck wet locker with refrigerator
  • Flybridge wet bar with refrigerator and U-Line icemaker

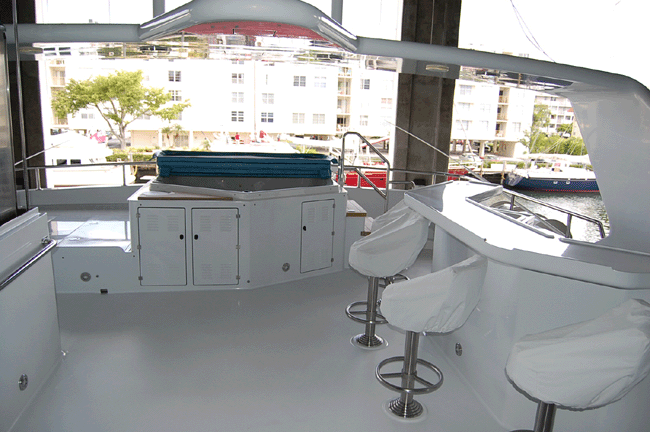

  • Flybridge Jacuzzi
  • 21ft. 6in. Northwind aluminum RIB tender with: 130 Honda 4 stroke outboard motor, radar arch, radar, VHF, ROD
  • Two (2) 10 man Switlik life rafts with hydrostatic release systems
  • Spare main engine props
  • Lazarette chest type freezer

Tankage & Capacities
  • Fuel: 14,130 gallons (53.487 liters)
  • Water: 2,550 gallons (9,652 liters)
  • Watermaker: 4,000 gallons per day (15,141 liters)
  • Lube Oil: 275 gallons
  • Waste Oil: 275 gallons
  • Waste Water: 545 gallons
  • Sewage: 556 gallons
  • Sludge: 60 gallons

Fuel Consumption
  • 10.2 knots @ 1100 RPM uses 28.8 gallons per hour and provides a range of 5001 nautical miles
  • 13.0 knots @ 1400 RPM uses 50.5 gallons per hour and provides a range of 3460 nautical miles
  • 15.0 knots @ 1870 RPM uses 123.5 gallons per hour and provides a range of 1716 nautical miles

Mechanical Equipment

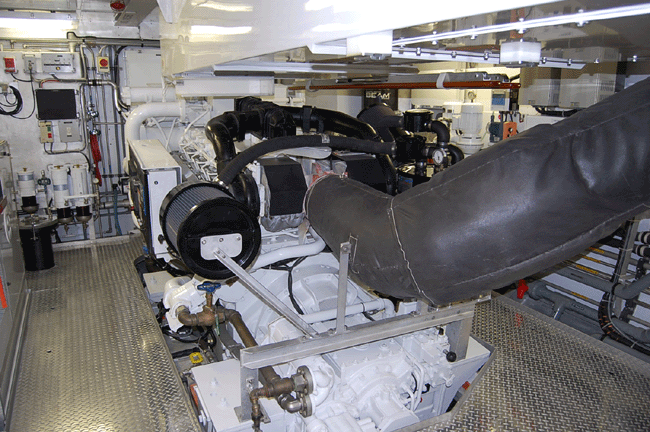

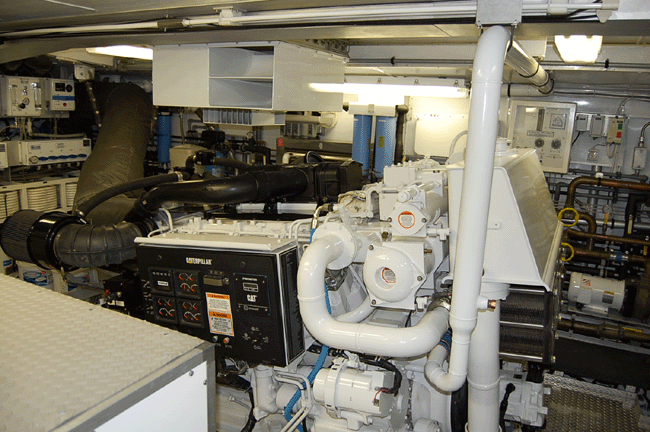

  • Main engines: (2) Caterpillar 3508B (1300 hp ea.)
  • Walker Air Seps
  • Gearboxes: ZF Marine, ZF365

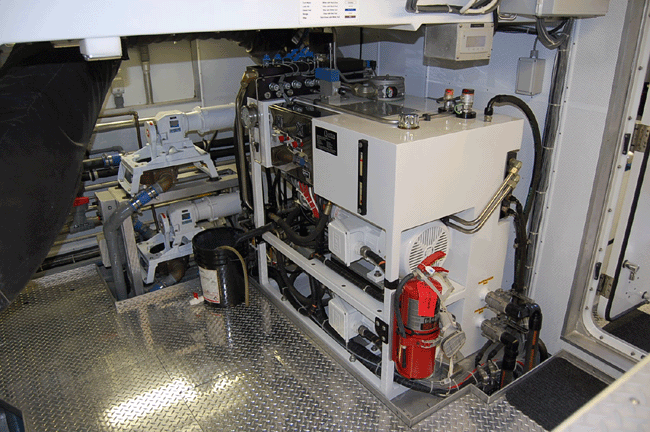

  • Quantum central hydraulic system with 2 auxiliary 20hp electronic monitors
  • Quantum 150hp bow thruster
  • Nautical Structures 4000lb articulating knuckle boom tender crane with full hydraulic function
  • Nautical Structures telescoping passarelle with full hydraulic function
  • Three (3) Nautical Structures gantry cranes, aft deck (2) and amidship (starboard)

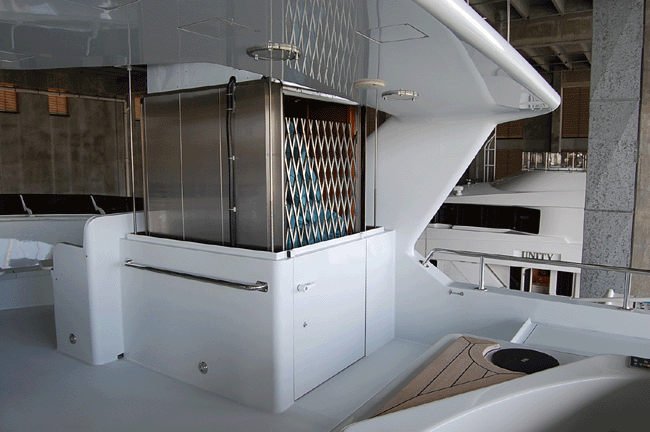

  • Lift-a-vator hydraulic integral elevator system
  • Bauer dive compressor

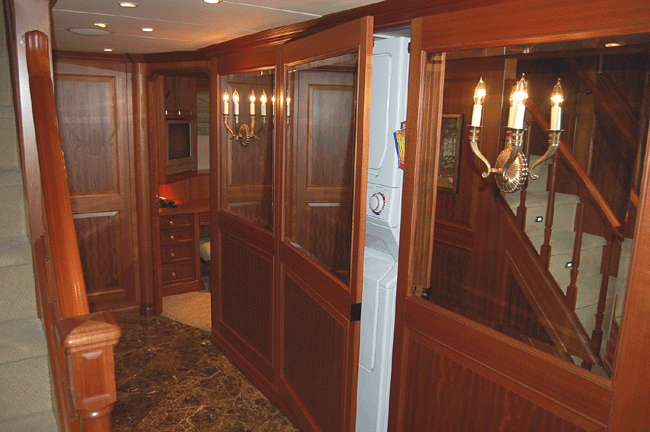

  • Three (3) laundry stations: Lazarette, guest quarters, crew quarters
  • Hamann USCG Type-II Waste Treatment Plant
  • Chem-Free ozone generator
  • Delta-T air ventilation system
  • Emergency fire/bilge pump system
  • Edson gray and black water commercial grade diaphragm pumps
  • Kaydon fuel filtration scrubbing system
  • Water softener system
  • Two (2) Air compressors and storage tank
  • Work bench with stainless steel sink and bench vise

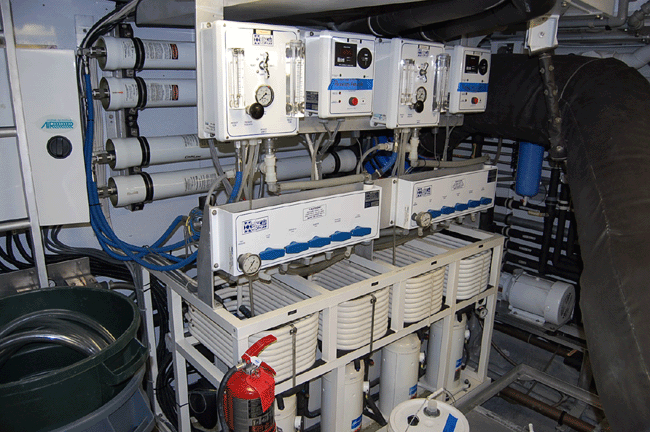

  • Two (2) Watermakers Inc. RO systems, each 2000 gpd
  • Marine Air chilled water air conditioning, 20 tons, 4 chiller units
  • Beam central vacuum system

Electrical System
  • Generators: Two (2) Northern Lights (65KW ea.)
  • Output: 208v, 3 phase, 60 hertz
  • Shore Power: 240v, 3 phase, 60 hertz
  • Voltage: 12v/24v/110v/220v
  • SiMON – vessel information monitoring and alarm system
  • Burger A.M.P.S. – ship’s information monitoring and alarm system
  • Atlas ShorPower conditioner

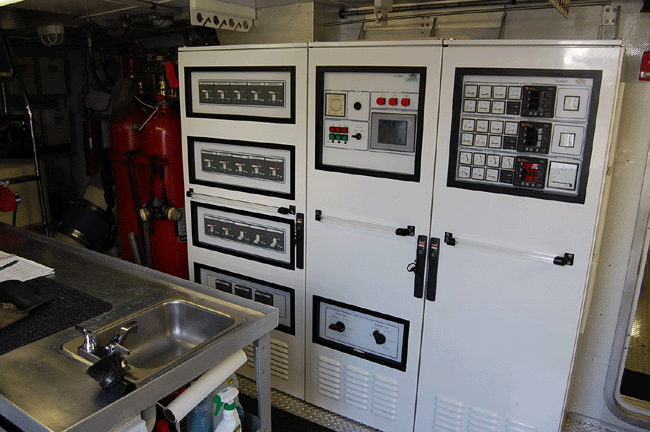

  • Atlas Tec-Power Switchboard and Main Distribution Panel
  • Sentry 12v & 24v automatic battery chargers
  • Fore and Aft Glendinning shore cable reels
  • Auxiliary fore and aft shore cable connections
  • WiFi network system

Tender & Toys
Sis W is set up to tow a large tender, and can supply a rafted vessel with 30 or 50 amp electrical power, fuel and water transfers. Tenders: 21' 6" aluminum rigid bottom inflatable Northwind with a 130hp Honda outboard, equipped with radar, plotter, and video depth sounder. 10' Avon fiberglass rigid bottom inflatable with a 15hp Yamaha outboard. Two kayaks.

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

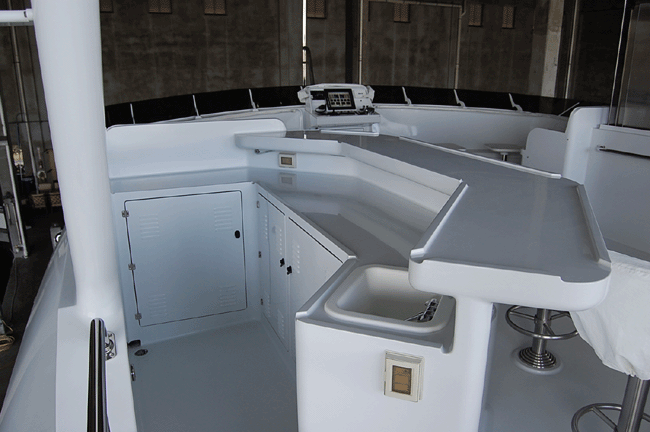

Bridge Bar                                                                      Elevator


Bridge Helm                                                                    Crane

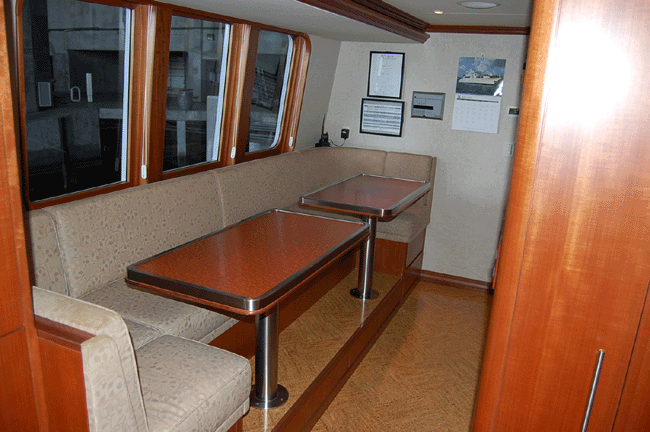

Crew Dinning                                                                    Crew Twin


Dinning                                                                           Staterooms corridor


Galley                                                                              Guests Queen (2)

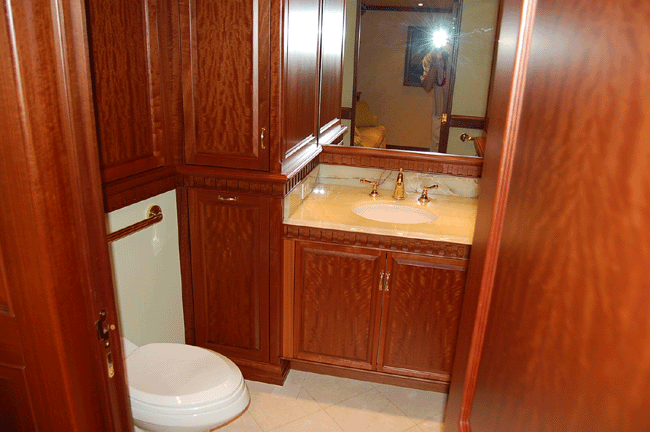

Guests Head Queen                                                        Upper/Lower next to Master


Lower helm


Port engine                                                                     STBR engine


Salon aft view                                                                  Salon forward view

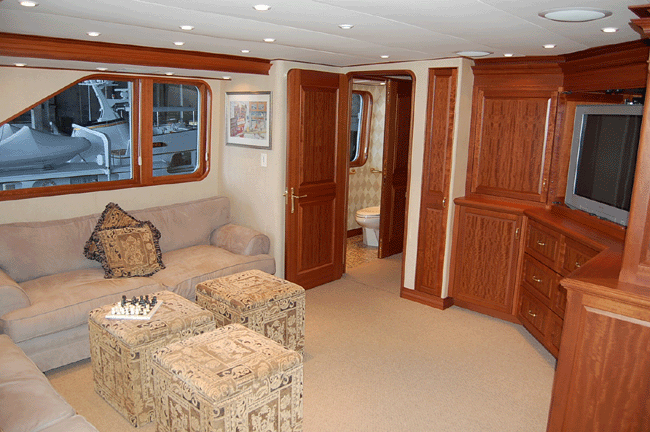

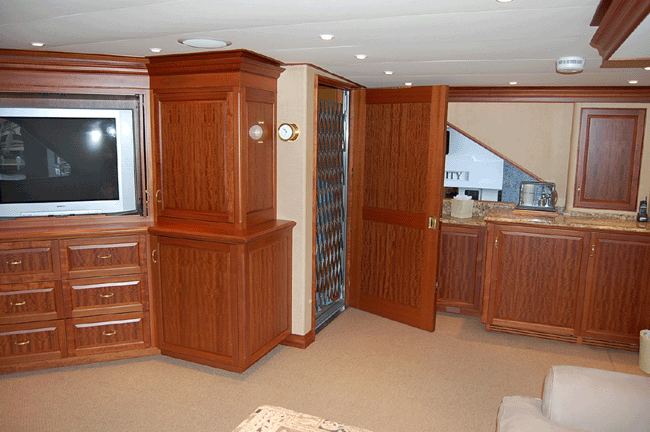

Bridge Salon                                                                   Bridge elevator

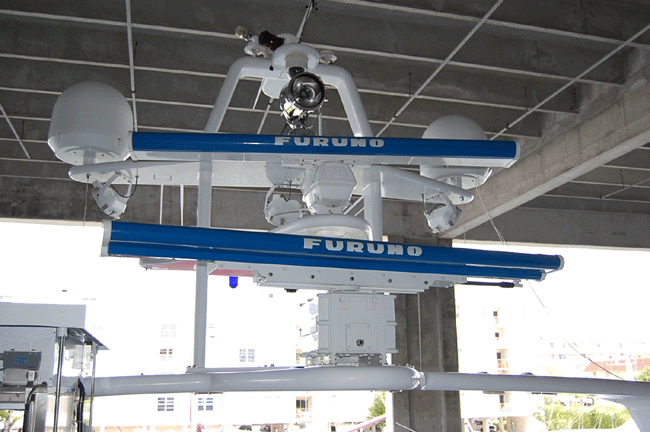

Radar                                                                           Quantum central hydraulic system
